Engineering Creativity for Neuroscience





Mechanical Accessories for Physiology Laboratories





Laboratory Rackmount RACK-19-3



This product is a modular, universal rackmount frame. It contains 2 fixed and 5 repositionable shelves.



        Click on the picture to get it in full size



Specifications / Technical Data



Total height: 199 cm (including the wheels)



Useful internal height: 180 cm



Size of the base frame (the total space requirement): 55 x 55 cm



There are four strong wheels on the base frame. The two front wheels can be fixed with levers.



There are 2 fixed shelves, one on the top, and one on the bottom of the frame. Furthermore there are 5 pieces of moveable shelves. The moveable shelves can be positioned vertically in 50 mm steps.



Size of the moveable shelves: 55 x 49 cm



Size of the fixed shelves: 55 x 55 cm



        Click on the picture to get it in full size



In the pictures above you can see the stoppers of the front wheels and the height adjusting assemblies of the middle shelves, respectively.





Massive Worktables



We manufacture Massive Worktables with strong steel leg system in any custom width. The desired width should be specified in the order.



Specifications / Technical Data



Heat- and acid-resistant plastic surface on the top plate



Height of the top surface from the floor: 75 cm



There are built-in leveling screws in the bottom of the legs



Payload: 2 kN / m2



There are two possible depths:

    60 cm deep version

    90 cm deep version

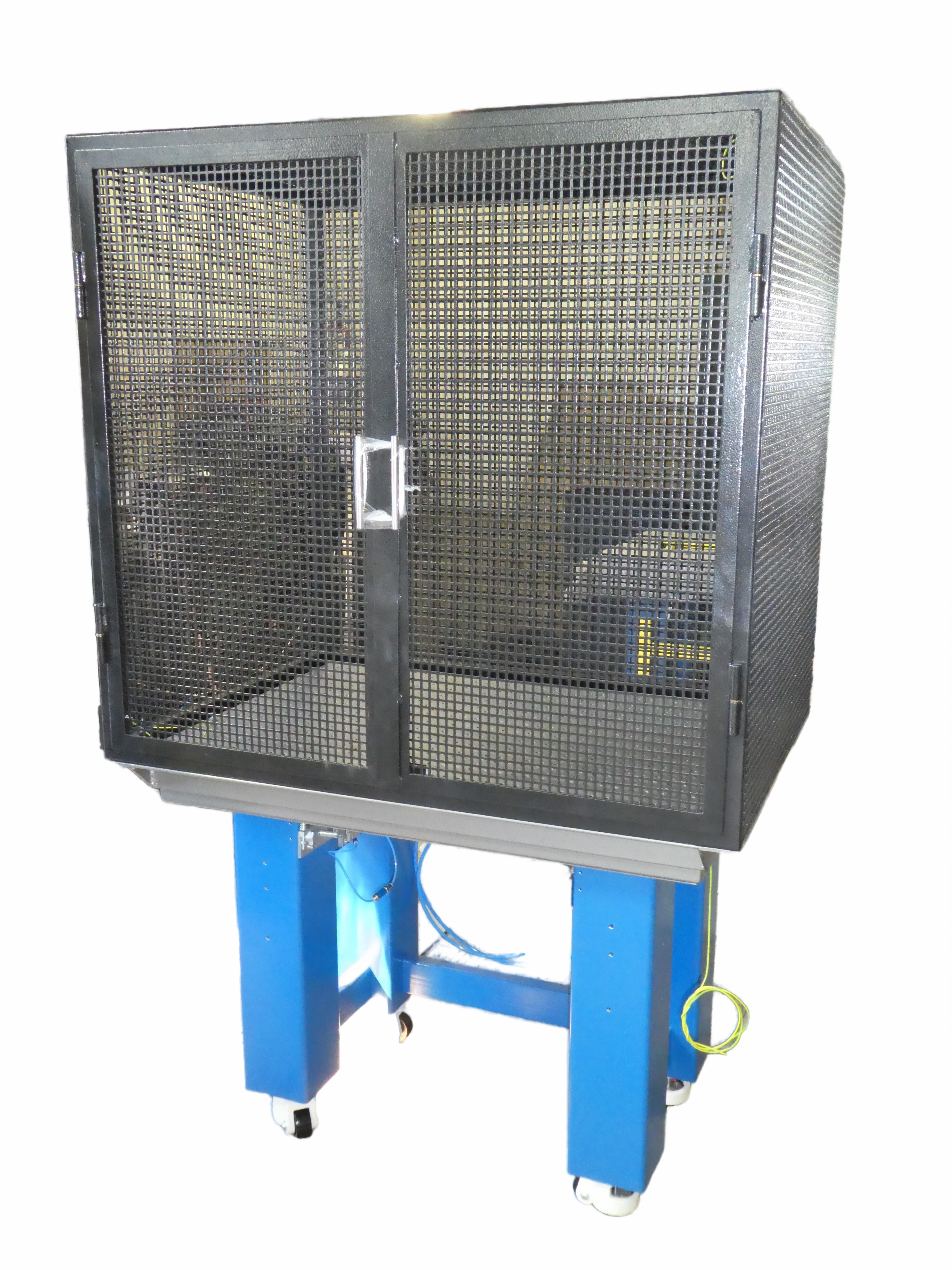

Faraday Cage: 2-door Version



This version of the Faraday Cage is manufactured as an accessory of the STable vibration isolation tables. The technical details of the 2-door Faraday Cage is published on our Vibration Isolation page.



    Click on the picture to get it in full size





Faraday Cage: Custom Design



We manufacture any custom designed Faraday Cage according to your special requirements. In the pictures below you can see several examples.



            Click on the picture to get it in full size





Prices



You can find the general warranty and shipping conditions in the beginning of the Services page.



Laboratory Rackmount RACK-19-3, for 19 inch wide measuring equipments (180 cm high, 55 (W) x 55 (D) cm, 2 fixed and 5 repositionable shelves): 850 EUR



Massive worktable with strong steel leg system and heat resistant surface on the top plate. Its height is 75 cm from the floor. There are built-in leveling screws in the bottom of the legs.

    60 cm deep version: 315 EUR / m2

    90 cm deep version: 475 EUR / m2

    120 cm deep version: 630 EUR / m2



For the prices of the Faraday Cages please contact us.
